Targus DOCK430 USB-C Docking Station

Targus USB-C™ Multi-Function DisplayPort™ Alt. Mode Triple Video Docking Station w/85W Power Delivery

Model：DOCK430

Connect your Alt. Mode or Thunderbolt™ host for an uncompressed triple-video workstation that stays charged and at the ready with 85W power delivery.

FEATURES

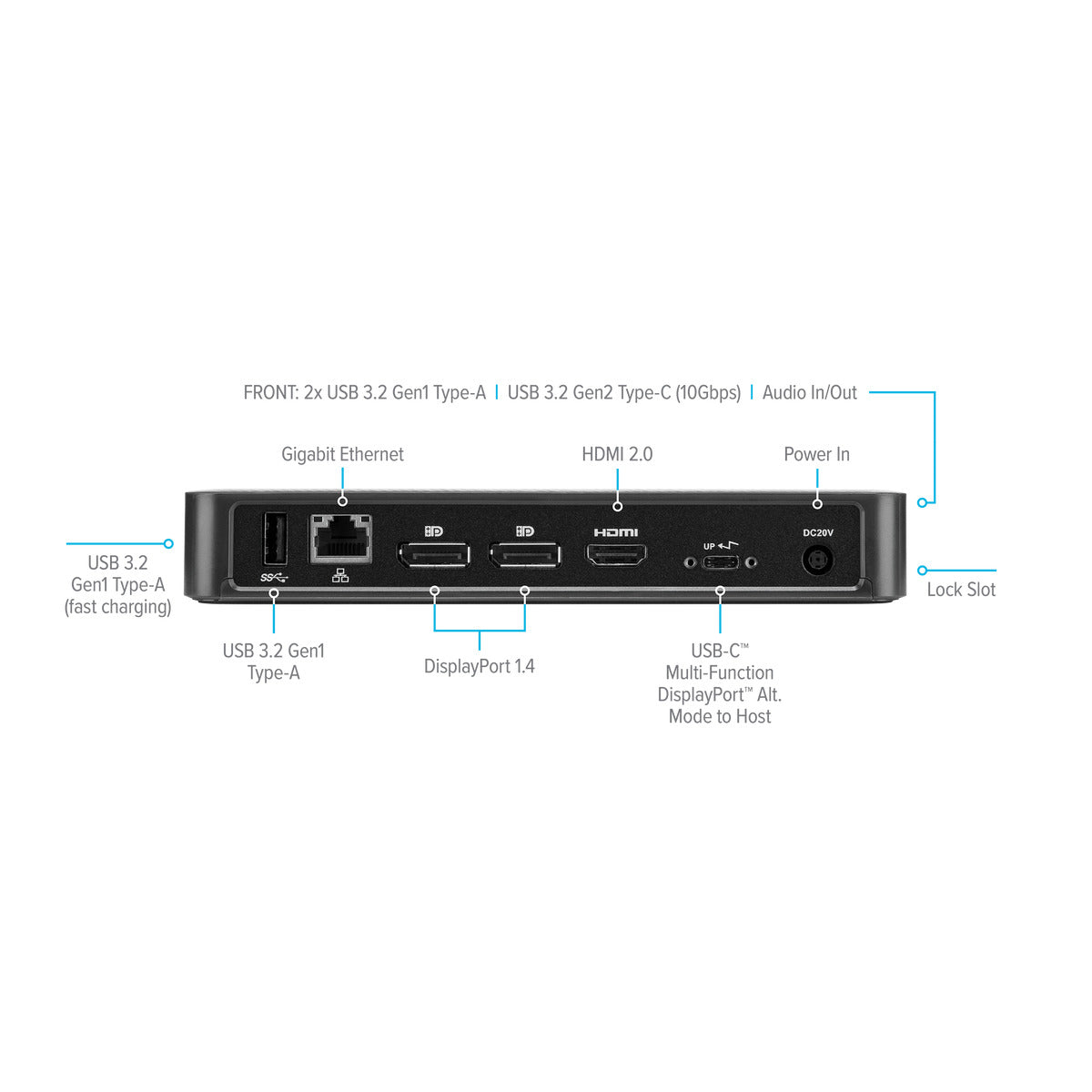

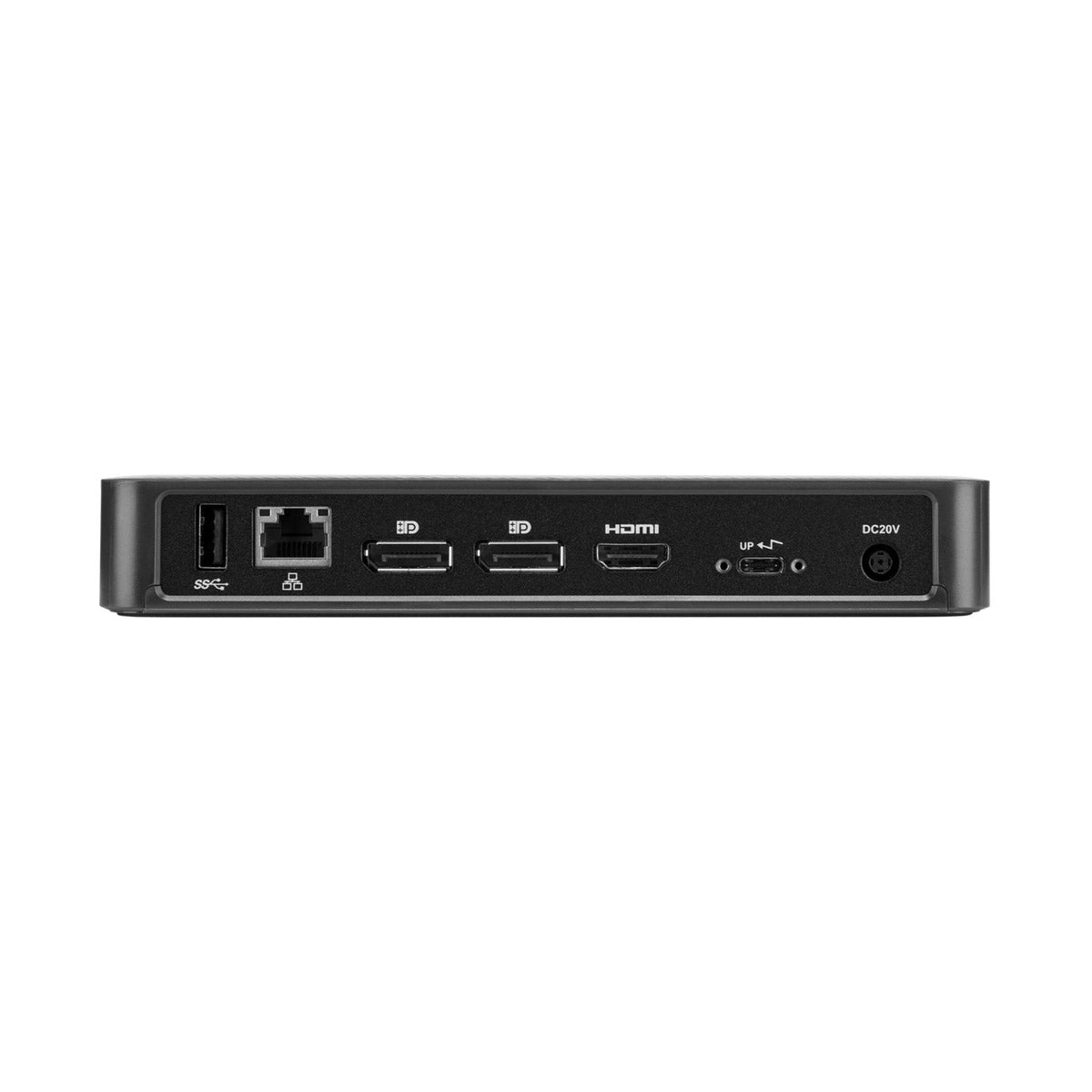

• Supports single 4K, dual 2K, or triple HD video via two DisplayPort™ 1.4 and one HDMI 2.0 monitor ports
• 5, 9, 12, 15, 20 VDC Power Delivery up to 85W
• 1 USB-C™ 3.2 Gen2 port (10Gbps)
• 1 USB 3.2 Gen1 Type-A fast-charging port
• 3 USB 3.2 Gen1 Type-A ports
• 1 Gigabit Ethernet port
• 1 3.5mm combo Audio In/Out port for mics, speakers, and earphones

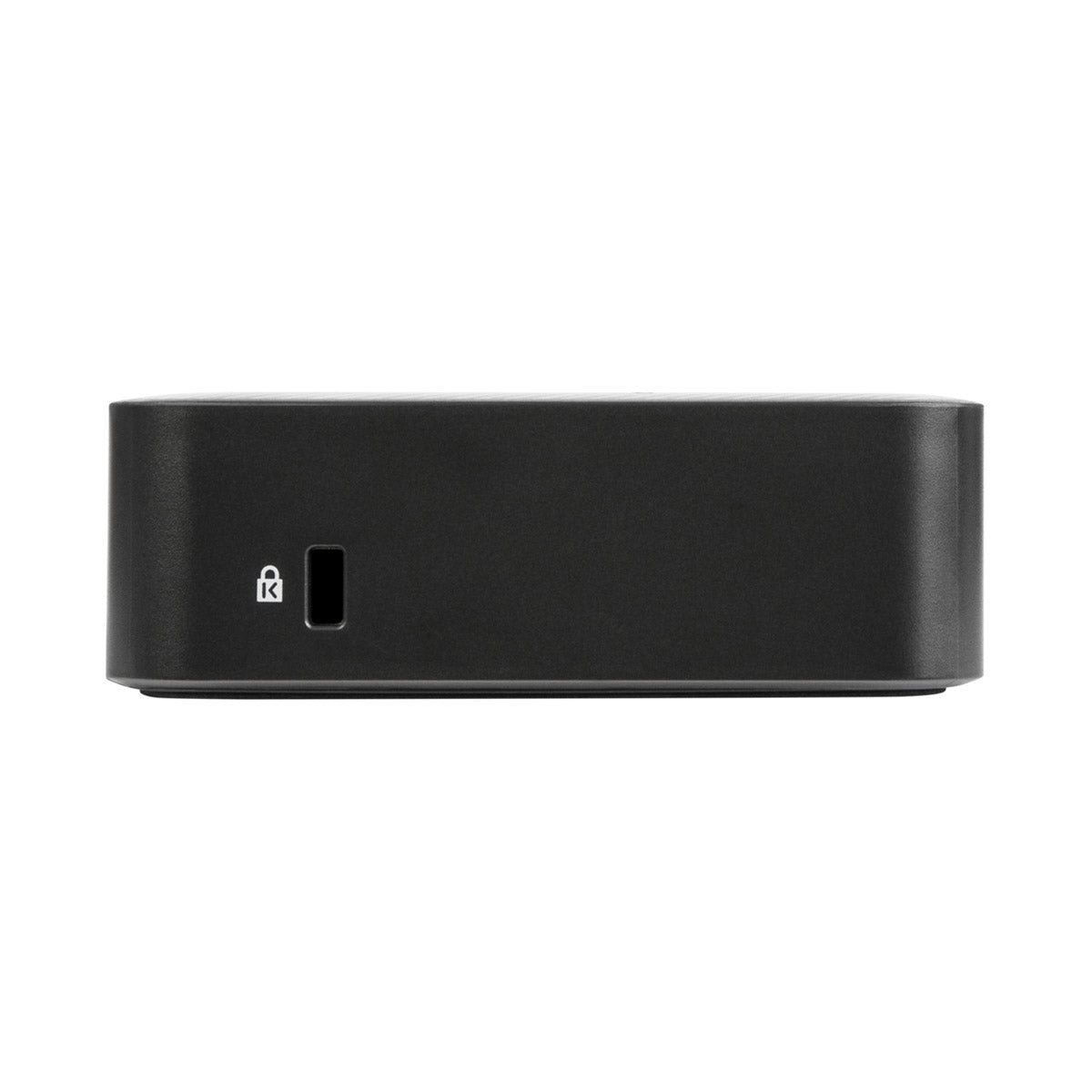

• Integrated lock slot accommodates standard security locks to safeguard equipment
• Compatible with Targus VESA Mounting Bracket (ACX003GLZ, sold separately)

Overview

Create a more powerful, productive workstation with the Targus USB-C™ DisplayPort™ Alt. Mode Docking Station with 85W Power. Sleek and powerful this Alternate Mode hosts packs all of the ports and power you need in one dock. Designed to support a wide variety of laptop brands and operating systems, DOCK430 offers broad compatibility for a range of hosts, devices and peripherals. Enjoy crisp, clear native video while supporting a connection up to three monitors. With two DisplayPort™ 1.4 ports and one HDMI 2.0 port, you’re able to support three monitors (1920x1080 p60), two monitors (2560x1440 p60) or one monitor (3840x2160 p60) and various lower resolutions. Plus connect all your favorite accessories with a combination of USB-A (4 USB 3.2 Gen1 ports, 1 fast-charging) and USB-C (1x 3.2 Gen2), plus Ethernet and audio ports. Designed for the modern workstation, the dock comes equipped with a VESA bracket mounting provision, which allows for use of the Targus VESA Mount Bracket (ACX003GLZ – sold separately) to hold your dock behind your display for even greater space savings.

Supports Two DisplayPort™ and One HDMI Monitor

Enhanced Power Delivery The USB-C™ DisplayPort™ Alt. Mode Docking Station provides up to 85W of USB Type-C Power Delivery at all popular voltages including 5, 9, 12, 15, and 20Vdc. DOCK430 will negotiate a Type-C Power Delivery contract with multiple platforms including PC, MacBook, Chromebook, and even popular Android phones.

Onboard USB 3.0 for Advanced Peripherals and Charging Multiple onboard USB ports make it easy to customize workspaces with the latest keyboards, external drives, and other essential peripherals. Efficient charging is close at hand with one powered USB 3.2 Gen1 port for keeping smartphone, tablet, or other devices powered up and ready to go.

Enterprise Software Suite: A Targus Exclusive Enhance security and improve user experience with the Targus Enterprise Software Suite for DOCK430USZ. Wi-Fi Auto Switch auto enables/disables Wi-Fi functionality when the dock’s Ethernet connection is active, reducing unnecessary network traffic and enabling faster connection speeds. MAC Address Cloning auto replaces the MAC address of the connected Targus Ethernet network adapter with any (Wired Ethernet, Wireless Ethernet, Bluetooth) MAC address of the local host, supporting device-based authentication methods. Ghost Device Removal purges older, latent Targus docking station devices from the local registry preventing registry bloat. Targus A/V Configuration Utility restores audio configuration, icon, and first-level application window’s positions to external monitors when re-connecting to a previously used Targus docking station.

What’s in the Box

• User Guide
• DOCK430 USB-C Docking Station
• Power AC Cable (For Hong Kong)
• USB C/M (screwed) to C/M (normal) Cable, Black; 1M, 5A, 10Gbps
• AC Adapter, output: 20V, 6.75A, 135W

Specifications
